S3i User Manual

If any question, contact us https://shaks.channel.io/
SHAKS S2i/S3i/S5i supporting four (4) modes, Android / Windows / iOS, and Mapping, each mode of which is recognized individually by its corresponding host game device. For example, when SHAKS is in android mode, it will connect to your android smartphone/tablet, it works like an “android Gamepad”. But, if you connect it to a windows PC, it does not work correctly, because SHAKS says “I am in android mode”, but the PC can’t hear it, although its Bluetooth connection is made.
[ Contents ]

Compatible Device & Service

S3i is supporting android, Windows PC, Notebook, iphone, iPad, Apple TV, Android Phone. Please select mode matching your device. And check your service to play!

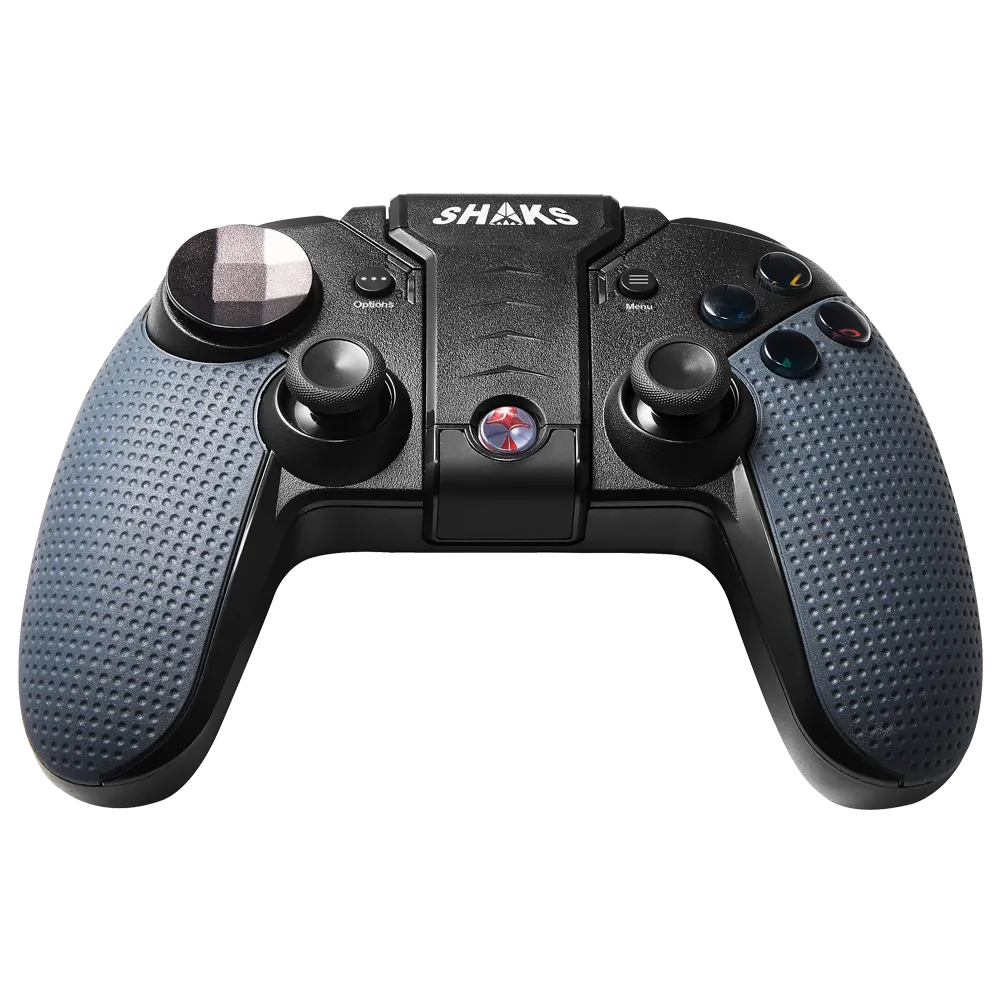

Button layout & Status indication by LED

Please check the button/key name and LED indication to see the status of your gamepad. LED #1,2 shows connection and battery charging status and status and LED #3,4 shows gamepad mode.

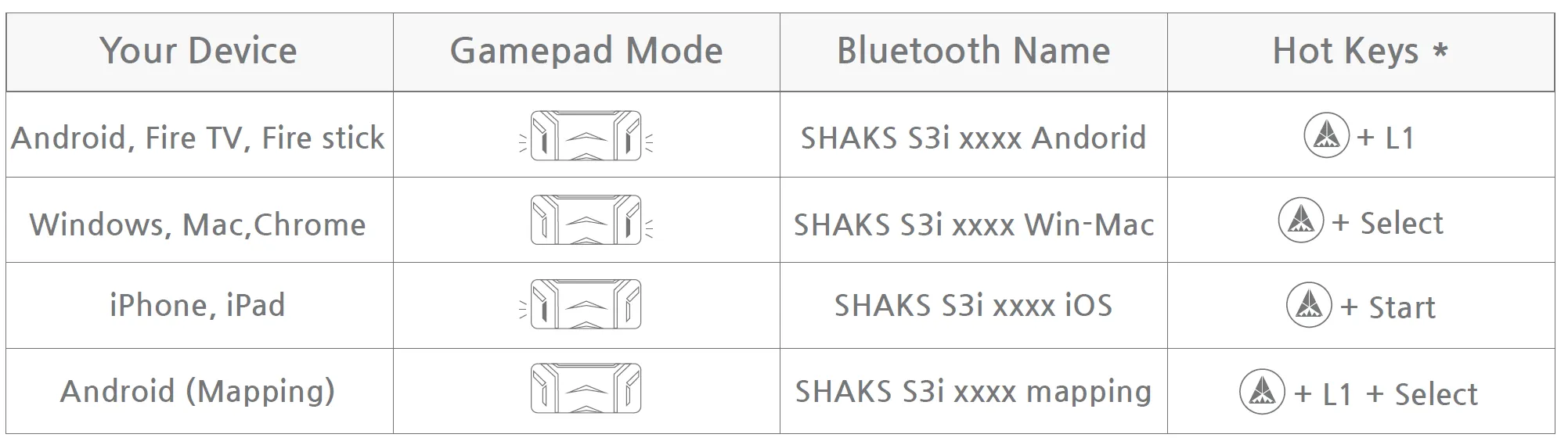

Mode selection according to your device

Mode change can be done by pressing the "Select+L1" button or "hotkey". Please the LED indication in the below table. The mode will change sequentially from Android→Windows, Mac→ iOS→ Android Mapping. Click to Video
3 Step setup: In power-off status, press two keys simultaneously until booting. This setup is available from xxx 13 (Dec. 21, 2020) firmware. If you have older version, please upgrade it via SHAKS Gamehub app. See below how to do 3 step setup.
1.
Find gamepad mode for your device in the table
2.
Change mode of gamepad by key or press “Hot Key* ”
3.
Pair Bluetooth, and enjoy!
How to use mode change in a sequential way: Press "Select+L1" key together until LED on. Then, automatically its power becomes off. Power on again, press "Select+L1" again for booting. And check the mode. If not it is not in right model, repeat this process until you see the right LED position to match the mode you want to match.
Mapping and Android mode are two different modes. Android phones can pair each one of two-mode. Switching between two-mode (Android ↔ Mapping), please DELETE the previously paired log, and pairing newly once again.

Connect your device

Once you correctly choose the mode, power on, and BT pairing
Power on: Press 'Power button' for 3 seconds. When the gamepad is turned on by pressing the 'Power button', the default is Android mode. Change mode according to the above table. And follow step 2 based on the device you wish to connect. After the initial setup is complete, the gamepad will remember your device to connect automatically.
BT paring : Press the "Select+Switch" key simultaneously to activate BT signal until #1,#2 LED flashing. Go to your device BT setting and select gamepad ID and click to pair.
Connecting with an Android Device (Phone, Tablet, TV Box, Fire TV, Fire Stick)
Connecting with a Windows, Mac OS, Chromebook
Connecting iOS device (iphone or iPad)
Playing on Mapping Mode (for Android only)
Wired connecting with a USB Cable for Windows, Android
Reset & Initializing to recover setup process

How to use Virtual Touch (Mapping) Feature

Enjoy the various touch-only games by SHAKS, like Genshin Impact, Roblox, Battleground, League of Legends Wild Rift, Lineage M, Call of Duty, etc.
1.
Firstly, from Google Play, download SHAKS GameHub App.
2.
Pair your gamepad in Touch mode, refer above “Playing on Mapping mode”
3.
Go to GameHub App and make sure the pad is connected properly
4.
At the bottom of the SHAKS App, click Mapping Service > Add New Game > Click the game you want to play
5.
After following the guide on the screen, refer video guide, and Mapping Service Manual

Utility Application

While you do not need to install app on your mobile phone to use the gamepad, we highly recommend so you can benefit from the following features from the mobile app.
iOS - under development

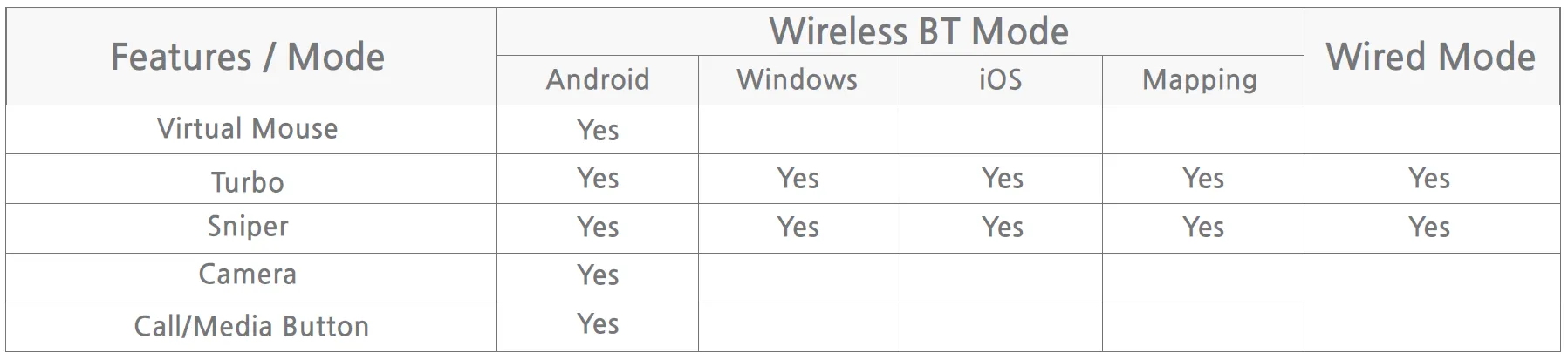

Useful tips to use utility app
Option button (O) is set at default as a mouse. If you wish to change the option button into another feature besides mouse, run the app on your device. Go under “Setting > Function Key Setting” to choose from:
Customization of option button is not supported in iOS. We are developing now. Please check back at our website in ‘21 Q1 for updates.

Compatible Gamelist Information

Please visit our compatible game list for searching relative information.

Useful information

Charge battery by charging cable from a computer or USB power charging device.
Quick Gudie : For download, click toggle key and download ~~
