Backgrounds
This is for ODM to prepare its proposal of Shaks mobile handheld gaming console. Shaks is a brand owned by Innopia, AKS and its global partner (called “Shaks”), specializing in gaming controllers, device, consoles optimized for cloud-gaming services via global telco. Shaks has a global network of cloud-gaming eco-platform serving its solution over 30 telcos as of October 2022, and its number is growing, supply its own controller (made with Qualcomm Technolgies) to the global telco, KT, Jio, SK, TIM, Etisalat to name a few. Also, his platform partner, Radian Arc, is supplying more than 30 global telcos is GaaS turn-key solutions including Blacknut, OnePlay, and so on.
Shaks is a strategic developer responsible for the game controller part of Qualcomm Snapdragon G-Series of 5G mobile gaming console since 2021, 2022. Provide its technology into Drakon and Hyperion.
Based upon its technical expertise and global network, Shaks plan to develop, manufacture its own mobile device with a competitive ODM partners.
Scope of Works
•
Shaks
◦
Device ID design
◦
System SW of Android
◦
Application
•
ODM
◦
Mechanical design
◦
Tooling
◦
HW development
◦
Certification - CE, KC, FCC
◦
5G Network certification
◦
Production based upon order placed by Shaks
Requested answer to this RFI
It is requested to quote below with estimated time plan based upon below requirement.
•
Development Fee
•
Licensing Fee as per necessity
•
Expected Product Cost
•
Commercial terms & conditions
Products Detailed Description
Design & Image
1.

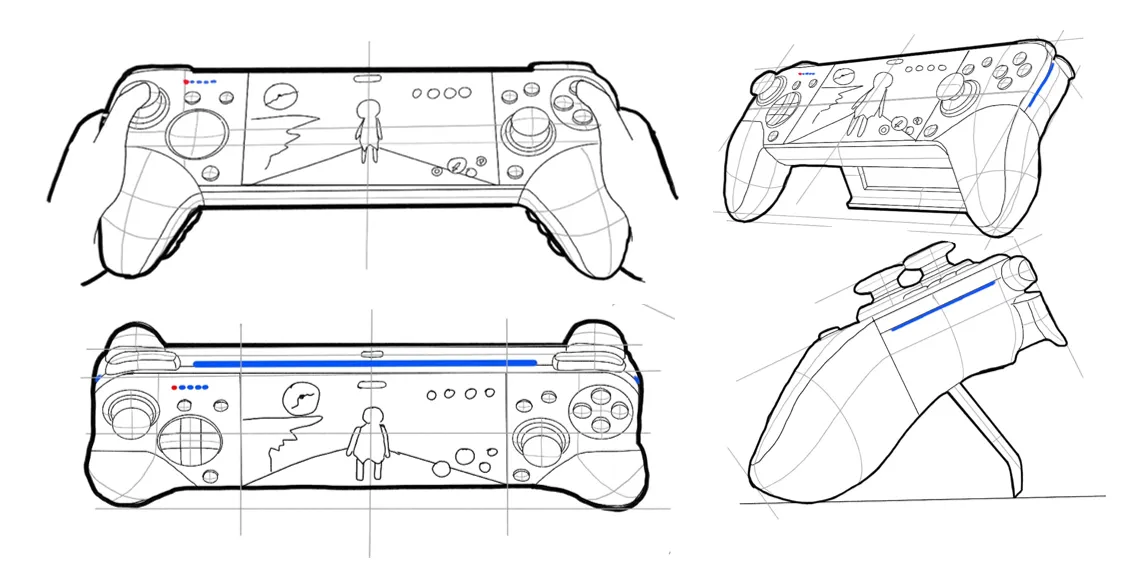

Product Design
a.
This is tentative to show image of the final product. Upon agreement, final ID rendering to be provided
2.
Package Design - To be designed by Shaks and will be given for the production to ODM
3.
Application Design - To be made, installed and maintained by Shaks
Hardware
1.
System architecture
a.

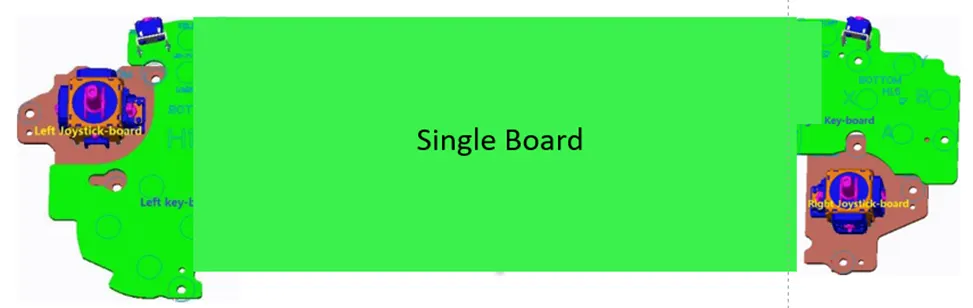

The single unit HW design is the reference for Hyperion and is based on a single board as below image.
2.
This RFI is based upon Snapdragon G3x Gen2 Project code “Hyperion”. Upon the roadmap by Qualcomm, this might be replaced.
3.
Display
a.
6.8” FHD+ Amoled 144Hz
i.
7” FHD IPS LCD can be considered as a replacement by cost reason. Separate quote is needed
b.
Resolution prefers to be 16:9, but other ratio option can be considered
c.
Display must be bright enough to see direct sun-lighted condition
d.
Multi-touch capacitive support
e.
Fast touch response time (must)
4.
Power
a.
Robust power delivery to sustain High clocks
b.
Dual 3000mAh battery
c.
Quick Charge 5
5.
Cooling
a.
15W active cooling
b.
Dynamic heading control without physical pan (desirables)
6.
Memory
a.
12GB LPDDR5
b.
Clock 4.2 GHz
c.
d.
External SIM
e.
Expandable storage via USB-C
7.
Connectivity
a.
WiFi 6e only
b.
WiFi 6e + 5G (sub6 basic, mm-Wave option)
c.
Bluetooth 5.2
8.
Camera
a.
Front & Rear 1080p at 60FPS camera
9.
Sound
a.
Speaker 2 x Speakers (Left/Right)
b.
MIC 2 x Dig Mic for clear voice chatting
c.
AUX 3.5mm AUX
d.
Vol Up/Down Buttons
10.
Haptic
a.
ERM haptic
b.
True immersive Stereo haptics (option)
11.
Sensor
a.
Ambient light / Proximity Detection
b.
Acceleration and gyro sensor
c.
Compass 3-axis
d.
Geo-magnetic
e.
GPS
12.
USB-C x 2 port
a.
one is for battery charging + data communication
b.
one for peripheral accessory such as smart glass, keyboard, mouse
13.
Weight & structure
a.
Should be less than 370g
b.
Should be pass from 50 cm drop test
c.
Must have LCD protecting edge mechanically
14.
Game controller part
a.
Analog 3D-JoySticks
b.
Triggers Hall effect sensors
c.
L1/R1 buttons
d.
D-PAD DOM Sheet
e.
ABXY Buttons
f.
START, SELECT Buttons
g.
Function Button x 2, Macro x 2
h.
LEDs indicators
Software
1.
Software to be developed by Shaks. but low level HW bring up should be made together with ODM.
2.
OS & driver frameworks
a.
Android 13 + Gaming related driver, Hal
b.
GMS certificate to access Google store
3.

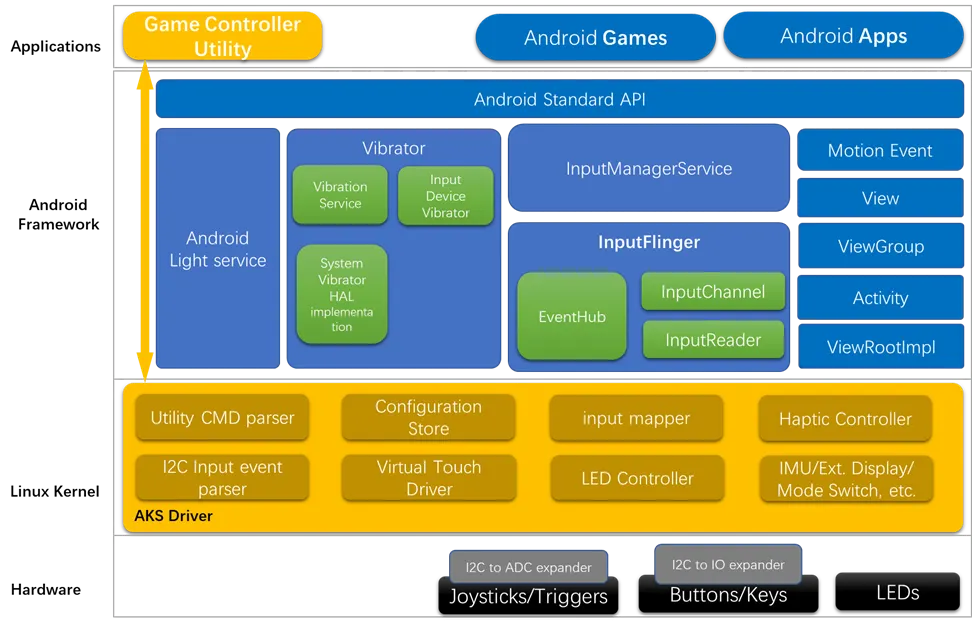

Application architecture
a.
Device application
i.
Security, anti-virus application
ii.
Payment utility application
iii.
and (to be selected)
b.
Service application
i.
Shaks utility
ii.
Snapdragon Elite gaming
1.
Game Quick Touch
2.
Game Smoother
a. Jank Reducer
b. Adaptive Game Perf Engine & Game Tuner
3.
Game True HDR 10-bit mode
4.
Adreno HDR Fast Blend
5.
Game Color Plus
6.
Game Fast Loader
7.
Updateable Graphics Driver
Game Playback capability
Detailed benchmarking test criteria will be shared with ODM when project kick-off. This will be verified also with Qualcomm.
Product validation specification
Detailed criteria will be shared with ODM when project kick-off. Can be quoted accordingly to that spec at that stage.
Certification
Please specify what tool or license needed fulfill its SoW considering, but not limited, below certification.
•
Min. List of certifications
◦
CE, FCC, KC
◦
5G Network certification
◦
RoHS, REACH, WEEE
◦
Google GMS/CTS certificate (Shaks will do)
◦
Netflix, Amazon Prime certificate (Shaks will do)
•
Plese specify
◦
List of sub-licenses from Shaks
◦
List already hold by ODM
Deliverables by both party
•
From Shaks
◦
Device Design ID
◦
Android system SW
◦
Application
•
ODM
◦
HW drawings ….
Delivery Time Plan
•
Target is to
◦
Contract and Project starting Jan 1, 2022 upon contract and Qualcomm DK kits availability
◦
PoC July/Aug 2023
◦
1st Commerical delivery from October 2023
◦
Commercial launching from November 1 2023
•
Please suggest Gant chart by each action break-down
Projected commercial volume
•
Trial service in Koea with 1st class telco 1,000 sets
•
1st commercial launching order: 300K sets during 4Q 2023
◦
Target country: Korea, EU, USA
◦
Target channel: Telco who is in cloud gaming service (Shaks client)
•
Global launching from 1Q 2024
◦
Target volume 3M sets annually
◦
10 global telcos over 10 countries
